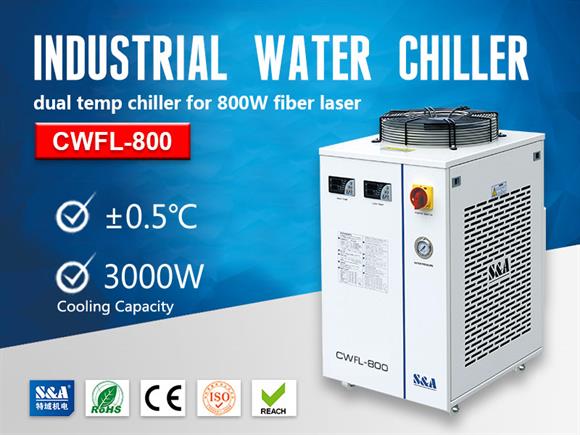

S&A small water chiller CWFL-800 for cooling 800W fiber laser engraver

S&A small water chiller CWFL-800, specially designed for cooling 800W fiber laser, has superior & efficient cooling performance. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A chiller), a professional Chinese water chiller manufacturer with 16-year experience.

Featuring the cooling capacity of 3000W and the temperature stability of±0.5℃, S&A water chiller CWFL-800 is loaded with environmentally friendly refrigerant R-410a, which helps better protect the environment.

With the dual temperature control system (low temperature control system & high temperature control system), S&A small water chiller CWFL-800 is able to cool the fiber laser device and the optics at the same time, greatly saving time and cost for the users. It is equipped with digital temperature controller ready to display water temperature or room temperature.

S&A water chiller CWFL-800 is equipped with 15L water tank and CE, RoHS and REACH compliant with multiple power specifications. It is equipped with wire-wound filter and de-ion filter, which can effectively filter the impurities and the ion in the waterways.

S&A small water chiller CWFL-800 has multiple alarm display functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm, which can greatly protect the chiller unit.

Purified water or clean distilled water is suggested to be used as circulating water of S&A chiller CWFL-800. Warranty is 2 year.

CWFL-800 water chiller parameter:
Voltage: 220V; Frequency: 50/60Hz; Refrigerant: R-22/R-410a
Pump power: 0.55KW; Tank capacity:15L
Max. lift: 45M; Max. flow: 70L/min
N.W: 80Kgs; G.W: 90Kgs; Dimension : 78 X 47 X 89 cm (L X W X H); Packing dimension: 87 X 60 X 109 cm (L X W X H)

About S&A Brand

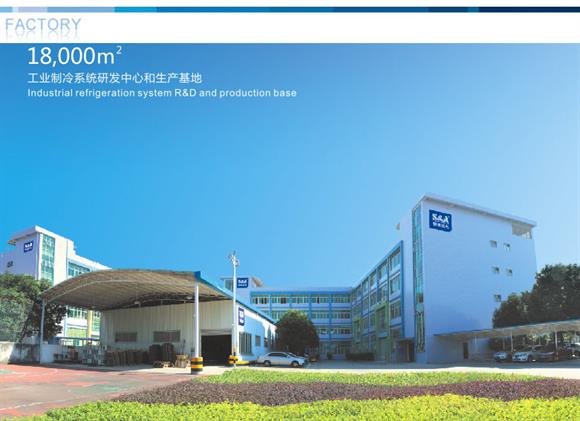

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
