S&A water chiller machine CWFL-500 for cooling 500W fiber laser cutting machine

$1100.00
Over a month ago - Sefton , North West, England Website - http://www.teyuchiller.com

  • 885ae0e4-4c6d-4f97-8a6e-0ed270f87cfa.jpeg
  • 3be28c31-3bc8-4cbf-b25a-cc90b87465c7.jpeg

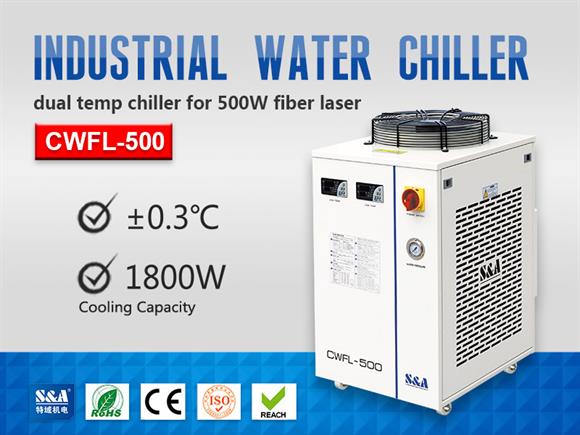

S&A water chiller machine CWFL-500, specially designed for cooling 500W fiber laser, is a cooling device with superior performance. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A chiller), a professional Chinese water chiller manufacturer with 16-year experience.

S&A chiller CWFL-500 features the cooling capacity of 1800W and the temperature control accuracy of±0.3℃.

With the dual temperature control system (low temperature control system & high temperature control system), S&A water chiller machine CWFL-500 is able to cool the fiber laser device and the optics at the same time, greatly saving time and cost for the users. It is equipped with digital temperature controller ready to display water temperature or room temperature.

S&A chiller CWFL-500 has two temperature control modes, including intelligent and constant temperature control modes. Under intelligent mode, the water temperature can automatically adjust itself according to the room temperature (the water temperature is generally 2℃ lower than the room temperature), which greatly avoid the generation of condensed water.

S&A water chiller machine CWFL-500 is CE, RoHS and REACH compliant and has multiple alarm display functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm, which can greatly protect the water chiller machine.

Purified water or clean distilled water is suggested to be used as circulating water of S&A water chiller machine CWFL-500. Warranty is 2 year.

CWFL-500 water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22/R-410a
Pump power: 0.55KW ; Tank capacity:10L
Max. lift: 45M; Max. flow: 70L/min
N.W: 50Kgs; G.W: 56Kgs; Dimension : 65 X 38 X 74 cm (L X W X H); Packing dimension: 79 X 51 X 93 cm (L X W X H)


About S&A Brand

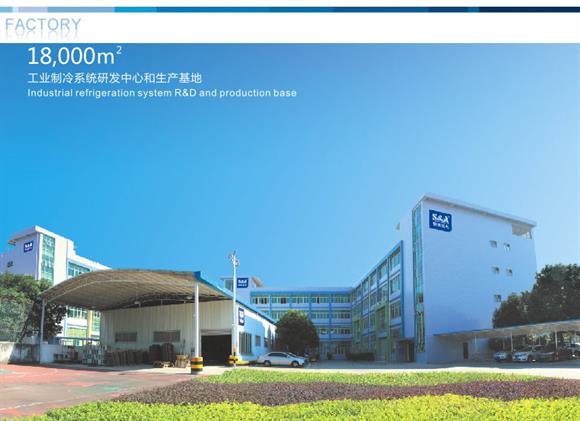

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates,CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%;
3. Standard bulk production, standard parts rate up to 80% ;
4. With excellent laboratory testing system, simulates actual working environment for chiller.
