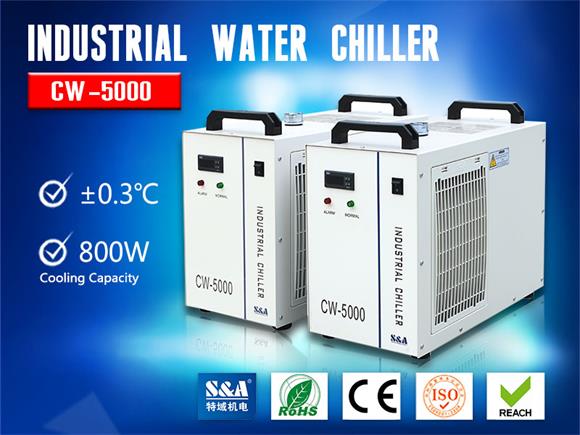

S&A air-cooled water chiller CW-5000 for cooling CO2 laser marking machine

S&A air-cooled water chiller CW-5000 is a professional refrigeration type cooling device, which is widely used in cooling 100W CO2 laser, 300W-600W UV LED and 5KW spindle. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A chiller), a professional Chinese industrial chiller manufacturer with 16-year experience.

S&A air-cooled water chiller CW-5000 covers 50% market share of CO2 laser refrigeration market due to its superior cooling performance, precise temperature control, compact design and ease of use. It ranks the highest sales volume among all S&A refrigeration type water chillers and it is very popular in Europe, South America, Asia and other markets.

Characterized by the cooling capacity of 800W and temperature control accuracy of ±0.3℃, S&A industrial chiller CW-5000 can bring down the temperature of the equipment very efficiently, greatly improve the working life and ensure the stable performance of the equipment.

S&A chiller CW-5000 has two temperature control modes, including intelligent and constant temperature control modes. Under intelligent mode, the water temperature can automatically adjust itself according to the room temperature (the water temperature is generally 2℃ lower than the room temperature), which greatly avoid the generation of condensed water.

Purified water or clean distilled water is suggested to be used as circulating water of S&A chiller CW-5000. Warranty is 2 year.

CW-5000 water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand

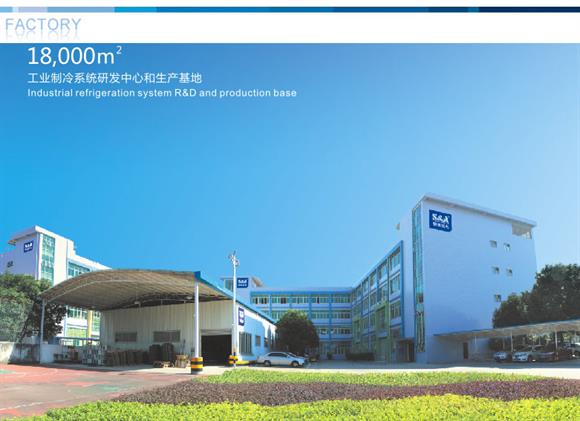

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
CONTACT S&A
SKYPE: teyuchiller ; Email:marketing@teyu.com.cn;
Website: www.teyuchiller.com
TEL:+86-20-89301885; FAX:+86-20-84309967
